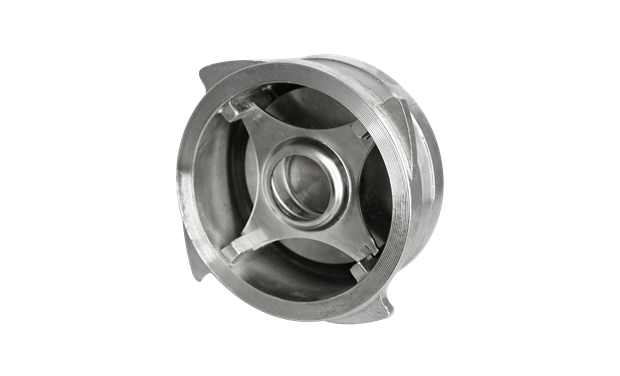

Alex Valves Automation manufactures Disc Check Valve in Wafer Construction having Spring Loaded Disc. Being Flange less and Sandwich Type Single Disc Spring Loaded Check Valve allows them to be installed between any flanges of different standard and in any position; including vertical pipelines where the fluid flows downwards.
The Wafer Type Single Disc Check Valve consists of four main components, the body, a disc, a star guide and a spring. The Disc check valves are opened by the pressure of fluid and closed through compression spring as soon as flow stops thus preventing reverse flow.
Usage & Safety Precautions
Disc Check Valve
Wafer Type Spring Loaded Disc Check Valves is also available with Zero Leakage by the use of Soft Seat. Alex Valves Automation Disc Check Valves is available in sizes up to 6” (DN150) Size and Pressure Rating up to PN40.
Our Spring Loaded Disc Check Valves Non Return Valve feature a compact and rugged design.
Design & Testing International Standard of Disc Check Valve
| Design Standard | : | DIN EN 558 – 2 |
| Inspection & Testing Standard | : | BS EN ISO 12266 – I (BS 6755 – I) / API 598 / ISO 5208 |
| Face To Face Distance | : | DIN EN 558 – 2 |
| End Connection | : | Wafer Type, Flangeless, Sandiwch Pattern |
| : | Suitable to mount between two flanges. | |
| Manufacturing Size Range | : | 1/2″ (DN15) to 6″(DN 150) |
| Pressure Rating of Valve | : | 150# |
| Valve Seat Leakage | : | Leakage Class IV (Metal to Metal Seal) |
| : | Leakage Class VI (Zero Leakage in Soft Seal) |
MOC (Bill of Material – BOM)
| Body | : | ASTM A 351 GR. CF 8 / CF 8M (SS 304 / SS 316) |
| : | ASTM A 351 GR. CF 3 / CF 3M (SS 304L / SS 316L) | |
| : | ASTM A 351 GR. CN7M / ASTM A351 Gr. CF8C | |
| : | NACE MR0175 / NACE MR | |
| Disc | : | S.S. 304/316 |
| : | S.S. 304L/316L | |
| : | Alloy 20 / Hast Alloy | |
| : | Duplex Steel / Super Duplex Steel | |
| Spring | : | S.S. 304/316/304L/316L |
| Star Guide Plate | : | S.S. 304/316/304L/316L |
| Seat | : | Metal to Metal |
| : | PTFE (Soft Sea – Zero Leakage) |
Salient Features
Investment Casting Body Construction
Compact & Rugged Design
Stronger, Lighter and Smaller than Conventional Swing Check Valve, Hence Less Expensive to Install and Maintain
Single Disc Type Disco Check Valves
Spring Loaded Disc to Prevent Reverse Flow in Pipelines
Easy To Installation between Two Pipe Flanges
Metal To Metal or Soft Seat option
Maintenance Free Design
Zero Leakage (In Soft Seat)
Full Port Opening
Less Pressure Drop
Wafer, Flange less, Sandwich Type
Shorter Length, Required minimum space
